Features of METAL Panel

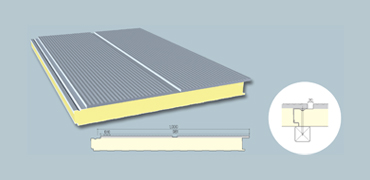

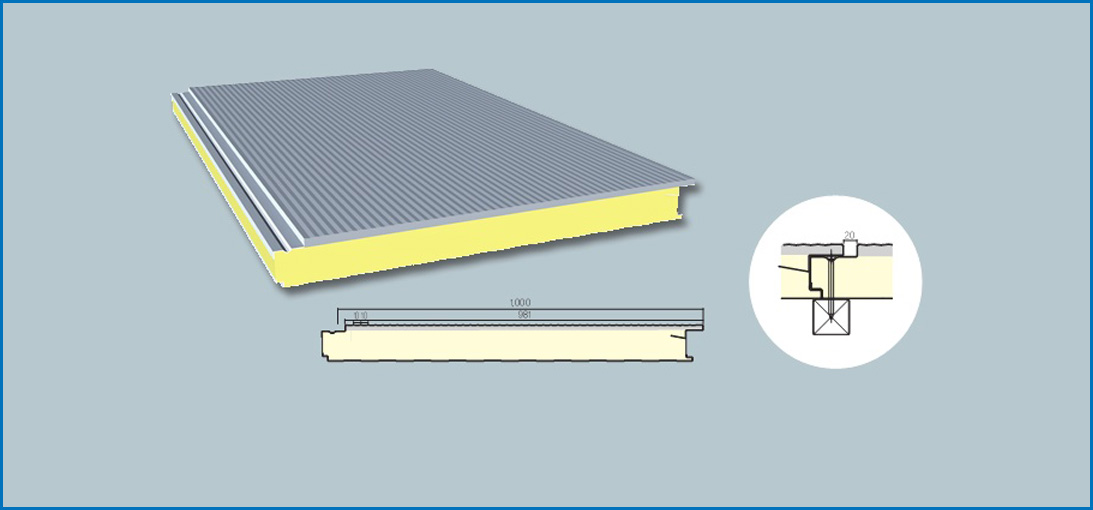

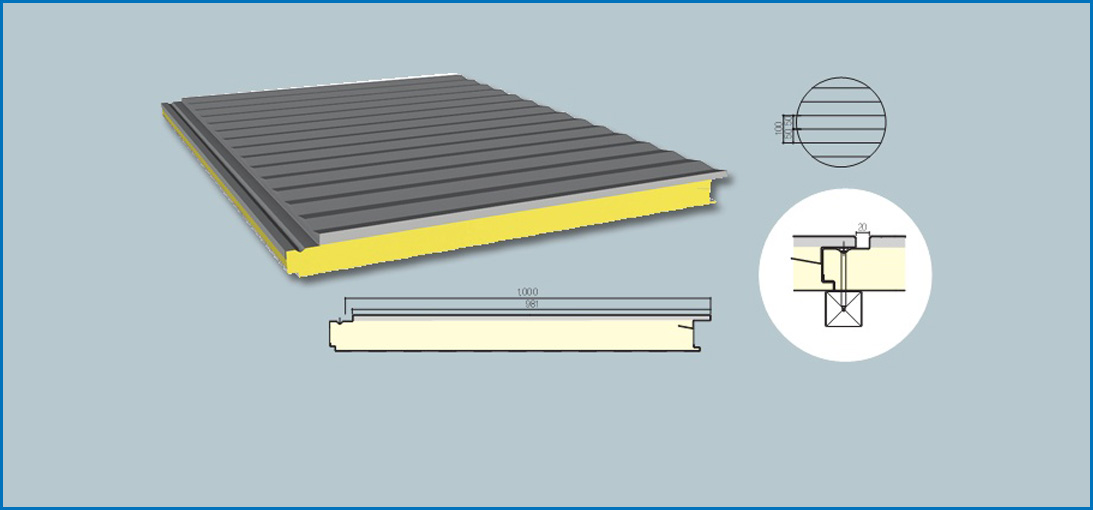

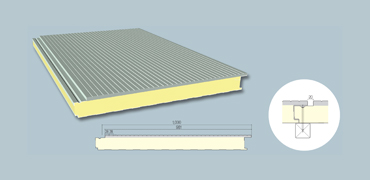

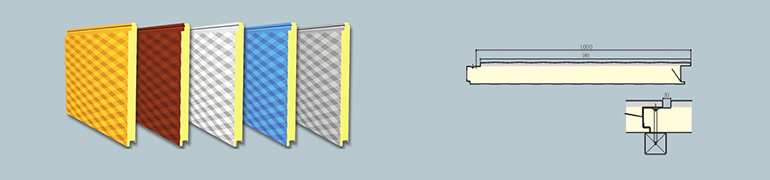

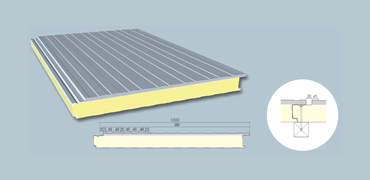

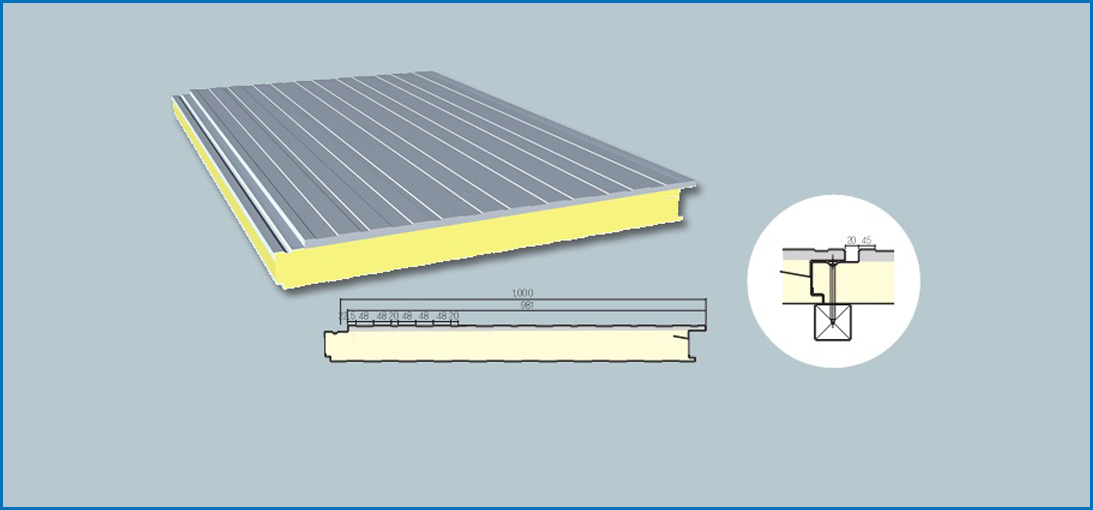

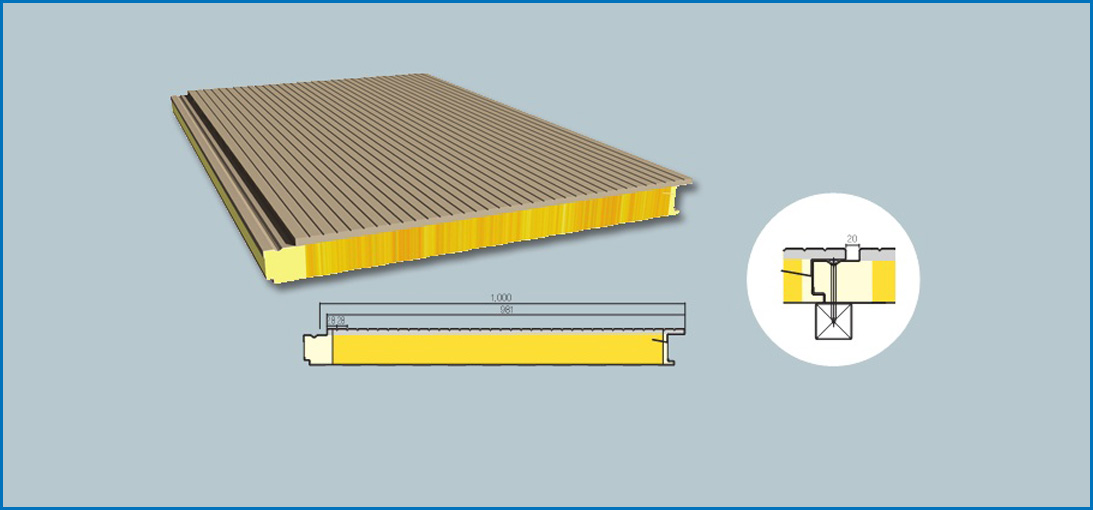

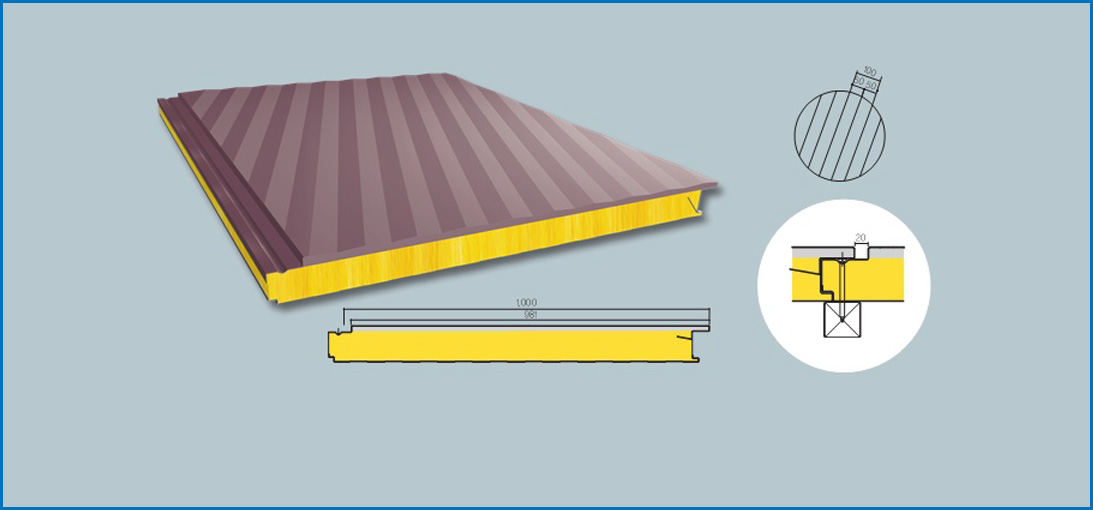

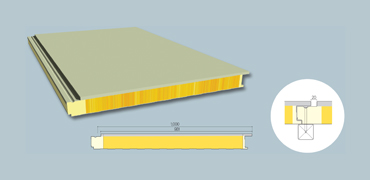

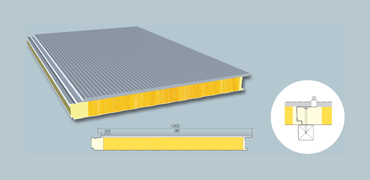

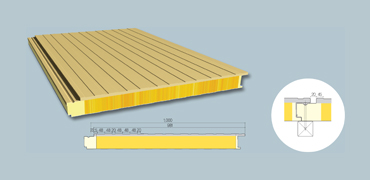

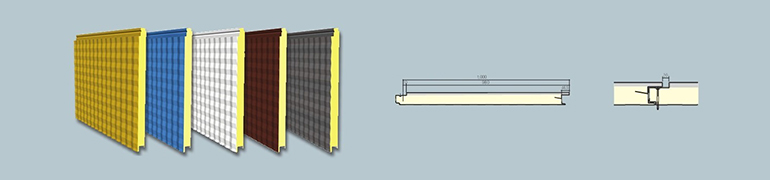

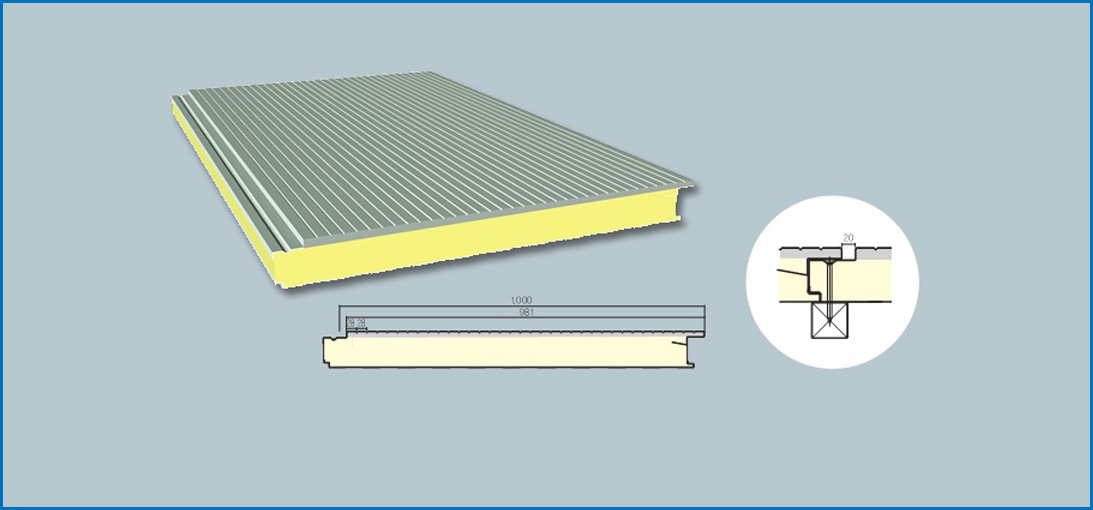

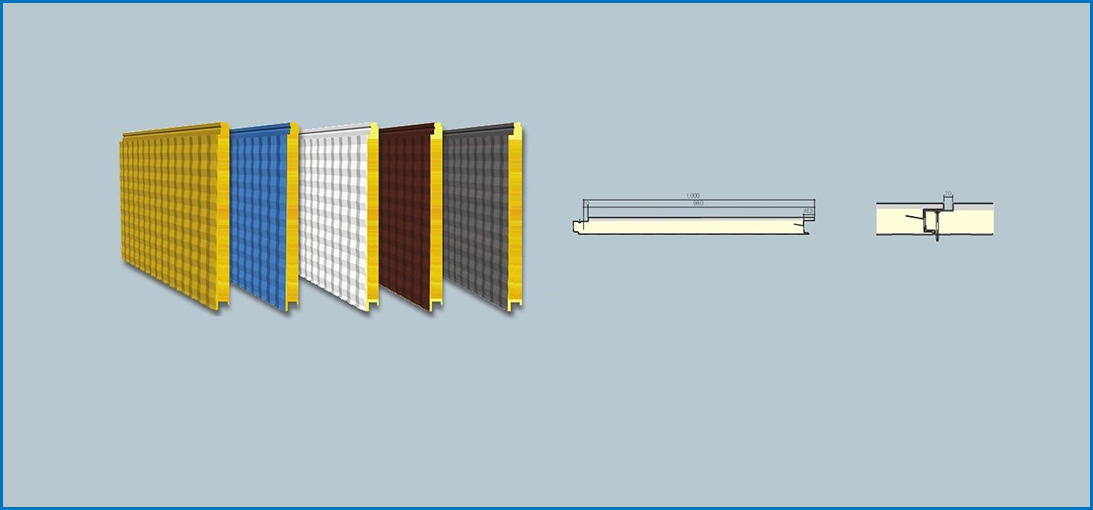

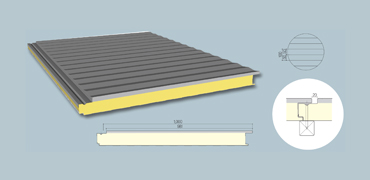

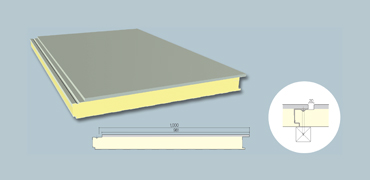

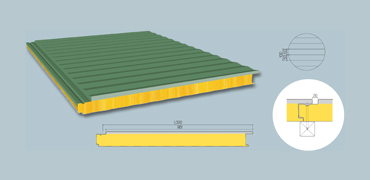

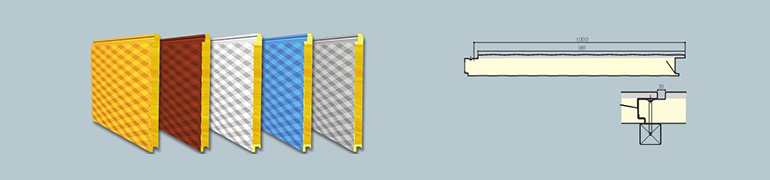

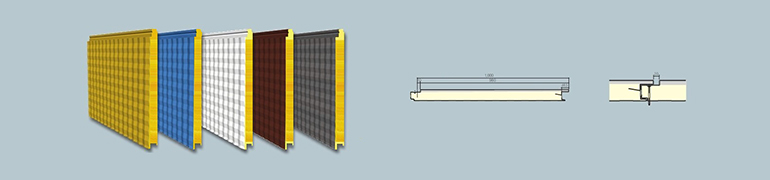

Large-sized panels with various types

We can provide not only flat panels but also various types of wave panels available for construction of buildings with various looks and feels Large-sized panels make installation shorter and minimize labors, thus reducing construction cost.
Various insulation materials with excellent fire resistance

You can make your choice among various insulations materials such as PIR/PUR and glass wool(Mineral wool) for the inside of the panels depending on functions and characteristics of buildings and we have resolved corrosion of structures due to condensation by excellent insulation.
Creating elegant and beautiful buildings

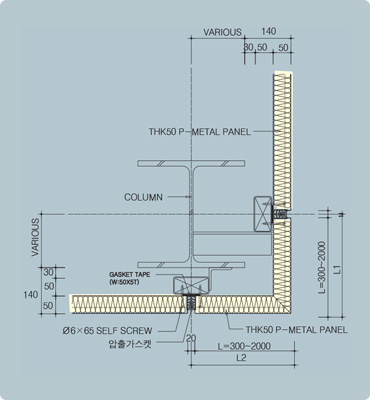

Corner Panel produced separately make the side of corner more clear and neat and is proud of excellent durability. For its Boltless Type not showing fixed bolt, it allows you to create refined and modern building.
Panels available for various applications

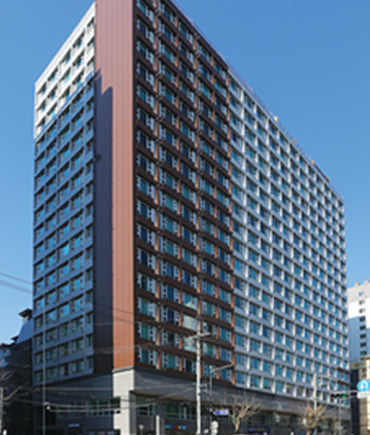

Metal panels can apply to commercial and logistics facilities, office buildings and other types of construction as well as industrial structures so that you can express a sense of modernity with greater elegance as you want.

DONGYANG PANEL SYSTEM

Metal panels are external materials widely used for construction of buildings with modernity, a virtue that has not been possible for existing sandwich panels and their excellent robustness and insulation allows extended durability over time. In addition, separate corner panels are added to keep the edges smooth and clean, and large-sized panels make installation shorter and minimize labors, thus reducing construction cost.

Metal panels are available for creating beautiful and elegant looks and applicable to a variety of modern buildings.

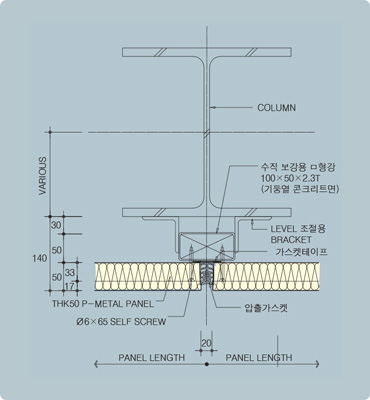

Additional gaskets and gasket tapes inside the panels replace silicones to show close and perfect water- and damp-proofing functions and boltless types without exposed fixed bolts can make you have sophisticated buildings with modernity which is appropriate for future-oriented construction.

GLASSWOOL Panel Incombustibility Test Result

GLASSWOOL Panel Incombustibility Test Result
Material	External Finishing	Polyester or fluoroplastic coating on galvanized steel sheets between 0.5 to 0.8 mm
	Mid Insulation Material	Urethane (PIR) density: 45㎏/m3±5 / Heat conductivity: 0.019 to 0.021 W/m·K Urethane (PIR) density: 35㎏/m3±3 / Heat conductivity: 0.019 to 0.021 W/m·K Glass wool density: 64, 74㎏/m3±10% / Heat conductivity: 0.033 W/m·K Mineral wool density: 100~140㎏/m3±10% / Heat conductivity: 0.034 W/m·K
	Internal Finishing	Polyester or fluoroplastic coating on galvanized steel sheets between 0.5 to 0.8 mm
Specification	Width (mm)	2 to 10 (less than 5m for the recommended length of metal panels / please contact our technical division for panels with length of 10m or longer
Specification	Thickness (mm)	50	60	75	100	125
